Standard MIL Defensive Barriers Hesco Defense Sand Barrier Wall
Product Description

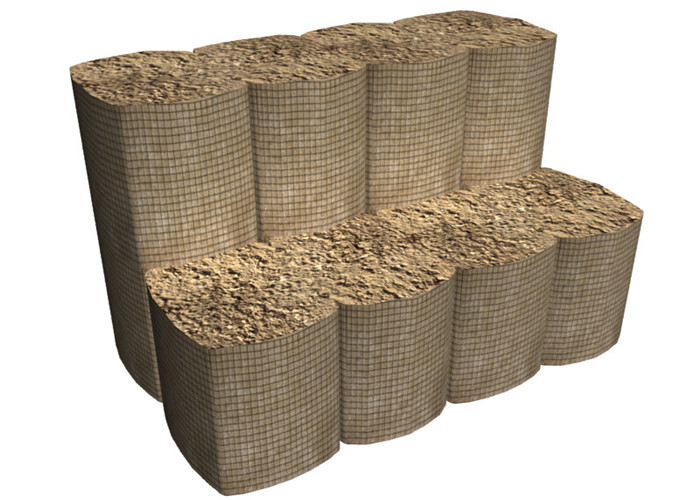

HESCO barrier/Hesco bastion/Hesco concertainer is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then hesco barrier like a defence wall or bunker, it is widely use in military to protect safety.
Hesco bastion(steel weld mesh gabion)are good.
Solution for emergency flood control,shelter house,military defence wall.
Material:
It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
Finish:electro galvanized,hot dipped galvanized,galfan coated,PVC coated.
Specifications
1) wire diameter: 3mm-5mm
2) hole: 2''x2'',3''x3''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be white,beige-sand color.
| Mesh wire diameter | 3mm,4mm,5mm,6mm etc |
| Spring wire diameter | 3mm,4mm,5mm,6mm etc |
| Mesh size | 50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or
as your request. |
| Panel Size | 0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m,2*2m, 2.21*2.13m or as your request. |
| Finish | Electro galvanized after welded
Hot dipped galvanized welded
Galfan coated after welded |
| Geotextile | Heavy duty non-woven polypropylene |
| Packing | Wrapped with shrink film or packed in pallet |

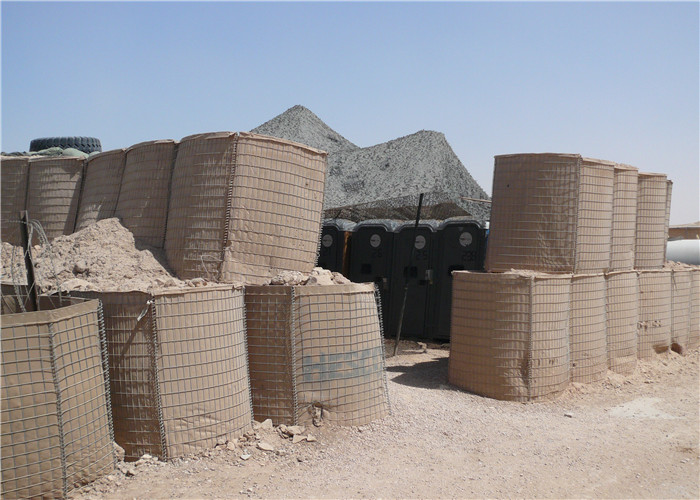

Hesco Gabion Usage
*Perimeter security and defence walls
*Equipment revetments
*Explosive and contraband search areas
*Ammunition compounds
*Personnel and material bunkers
*Observation points
*Defensive firing positions
*Highway checkpoints
*Border crossing checkpoints
*Protection existing structures
*High way traffic management
Hesco Application
--Perimeter security and defence walls
--Equipment revetments
--Explosive and contraband search areas
--Personnel and material bunkers
--Observation points
--Defensive firing positions
--Highway checkpoints
--Border crossing checkpoints
--Protection existing structures
--High way traffic management
--Flood control
--Water courses
--Emergency flood deployment
--Erosion control
1) Standard defensive barriers

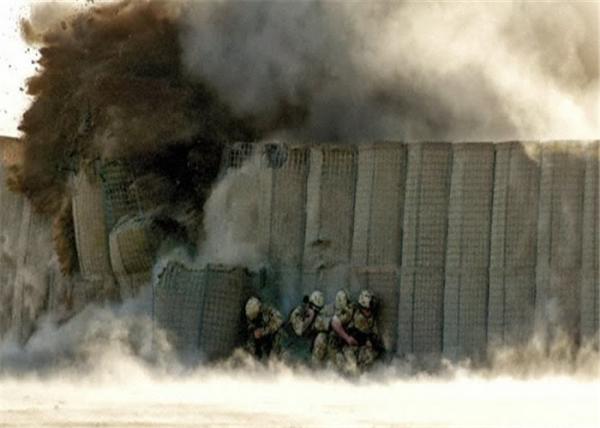

The standard defensive barrier is the original defensive Concertainer product and has become renowned the world over as the ultimate force-protection barrier system.
Attacks from terrorists, insurgents, and other adversaries are a constant reality to both military and civilian personnel, in dangerous spots around the globe. Defending against these ever-present threats demands protection that is secure, reliable, and readily available.
Whether used as a preventative barrier or to define boundaries, defensive barriers have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
2) Recoverable defensive barriers
The recoverable range of defensive barrier has been developed in direct response to two important factors: the military’s increased commitment to environmental responsibility, and the rising costs of recovery of material after the end of the mission.
Deploy
Recoverable barriers are deployed in exactly the same way as standard defensive barriers. All previous sizes are available in the range.
Recover
Once the mission is over, it’s simple to recover the cages for disposal. The removal of one pin opens the cell and allows the fill material to flow freely from the cell. The cages can be recovered fully intact and can be flat packed for transportation to a disposal site.
The recoverable range provides the same high-specification welded mesh and geotextile as standard defensive barriers, but now all models feature a new design to provide the ultimate in engineered force protection.
